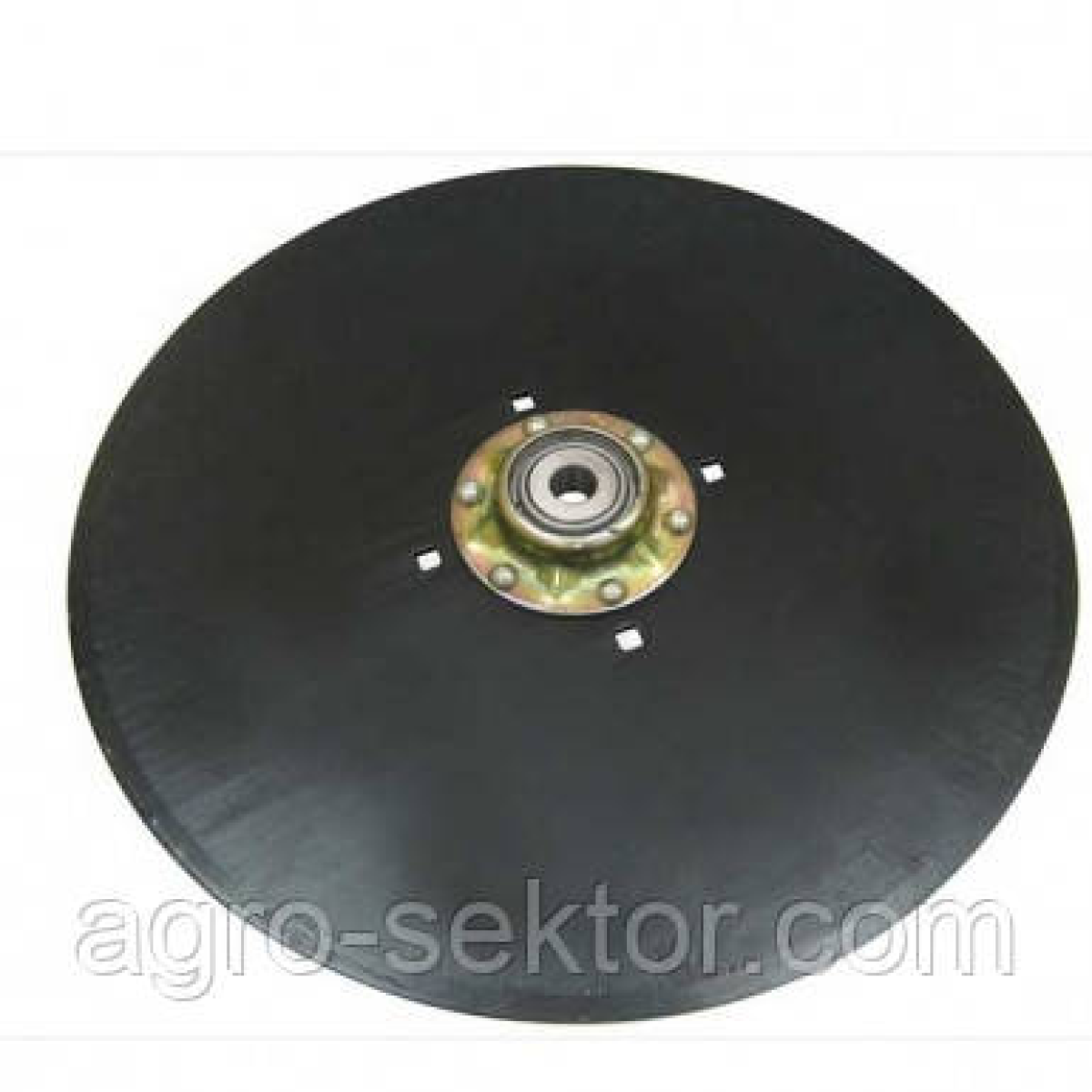

Диск сошника сеялки Great Plains в зборі 381x4 820-287C/864-GP121/404-072S з ступицей

Опис

Диск Great Plains, Лапи диски та Запчастини на землеоброблюючу техніку в Дніпропетуванні. Диск-сушарка в зборі, встановлюється на техніці Great Plains. Параметри: діаметр — 381 мм, товщина — 4 мм 1 107-111D DD BRG FLANGE DUST COVER 2 817-704C UPPER SEED TUBE CAP 3 121-004S OPENER SPRING ROD ASSY. SHRT. 4 817-697C HD 00 SEED TUBE ASSEMBLY 5 121-151D OPENER MOUNTING BRACKET 6 142-198D STRAIGHT ARM OPENER PIVOT PIPE 7 198-331D SEED TUBE 25S HOOK CLIP 8 221-130H OPENER WELDMENT-HD 00 SHORT 9 404-121S 4.0 MM 15 DISC W/ 5/8 ASSY Includes items 27-29 10 404-170H 25P SCRAPER SEPARATOR WLDMT 11 801-172C SCREW HEX SLT 10-16X3/4PTHD CT 12 802-121C RHSNB 1/2-13X5 1/2 GR5 13 802-228C HHCS 5/8-11X1 1/2 GR5 NYL 14 803-169C NUT HEX FLG. LOCK 1/2-13 PLT. 15 804-040C WASHER MACH 1.19 X .63 X 18GA 16 805-109C PIN COTTER 1/8 X 1 1/4 PLT 17 805-127C PIN CLEVIS 1/2 X 1 3/4 18 805-234C PIN CLEVIS 1/2 X 4 PLATED 19 805-335C PIN ROLL 5/16 X 5/8 PLT 20 817-084C PARALLEL ARM PIVOT BUSHING 21 817-349C SEED FLAP, UHMW, LONG For use without Seed-lok or Keeton Seed Firmer 21 816-536C SEED FLAP-RUBBER, SEED-LOK LNG For use with Seed-Lok 22 816-306C PLUG, SPRING ROD CASTING 23 817-688C HOLE PLUG 1 3/4 24 802-045C HHCS 1/2-13X5 GR5 25 804-154C WASHER POWDER METAL CONE 1/2 26 803-037C NUT HEX WHIZ 1/2-13 PLT 27 107-137V FLANGE AND BEARING ASSY 28 800-213C RIVET,BUTTON HEAD 1/4 X 1/2 29 820-287C 4.0 MM 15 DISK (21 DEG BEVEL) 30 122-001S PW ADJUST TRUNION ASSY 31 817-328C T-HANDLE ASSEMBLY 32 805-186C PIN ROLL 5/32 X 5/8 PLT 33 817-347C OPENER TRUNION 34 807-106C SPRING .540 O.D.X 1 1/4 X.054W 35 805-385C PIN CLEVIS 3/8 X 3 PLT 36 800-008C CLAMP HOSE 1 1/2 NO. 24 37 816-239C SEED HOSE 56 RIBS X 11 LONG 38 800-009C CLAMP HOSE 1 5/8 NO. 26 39 121-044D ADJ.YOKE END 11/16““ OPENING 40 803-036C NUT HEX JAM 1/2-13 PLT 41 803-193C NUT HEX FLANGE 1/2-13 GR G PLT 42 121-154D SPRING STOP STAMPING 43 802-550C HHCS 1/2-13X10 SPTHD GR8 44 807-262C SPRING COMP 2.56ODX.393X12.875 45 812-236C OPNR SPRING RD TRUNION CASTING 46 188-001V BEARING AA205DD 47 890-466C HSG RIBB FLG 6BOLT PLT
