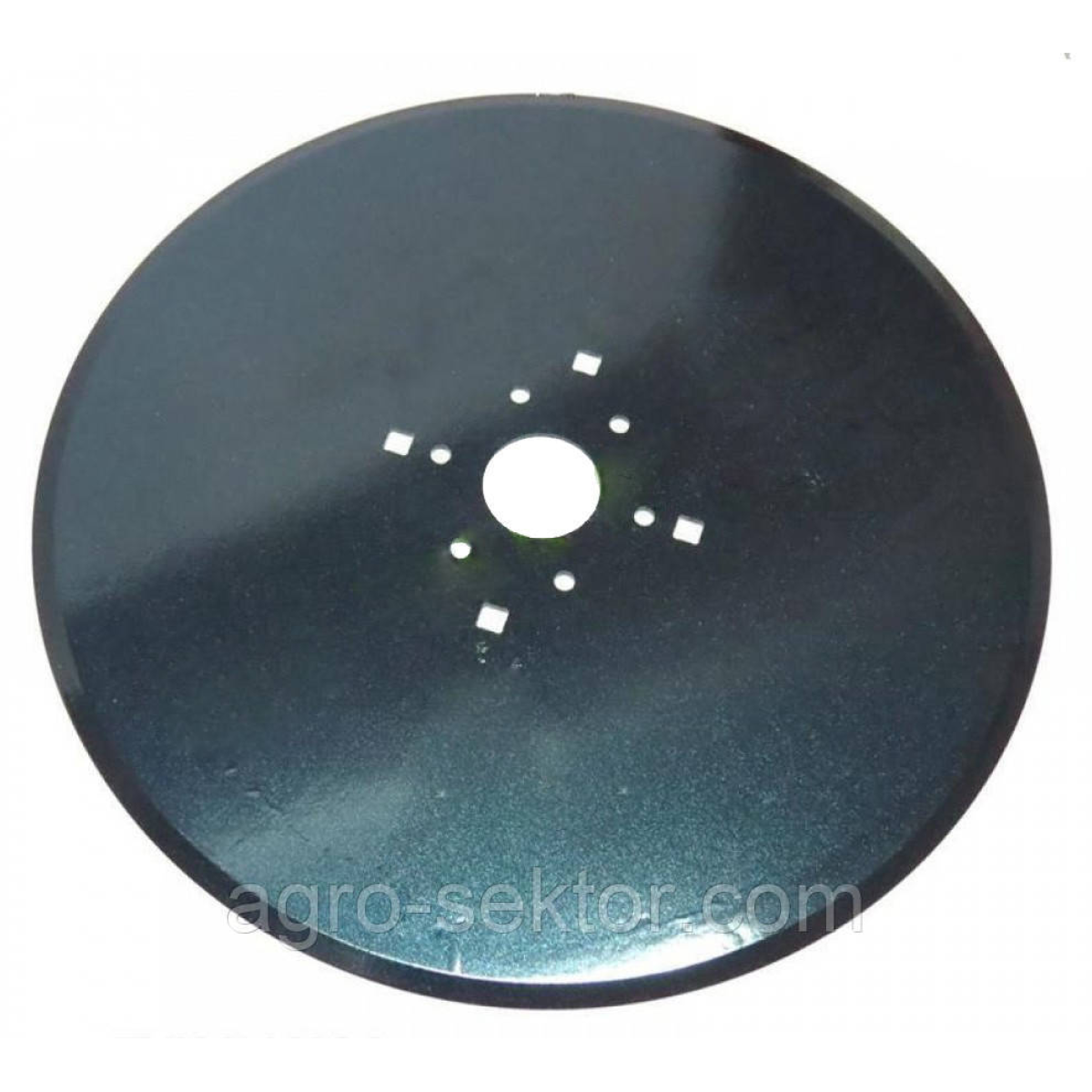

Диск сошника сеялки без ступиці Great Plains 820-287C

Опис

Диск Great Plains, Лапи диски та Запчастини на землеоброблюючу техніку в Дніпропетуванні. Диск сошина 381x4, запчастина для техніки Great Plains без маточини (зі маточиною 404-121S) під підшипник 188-001V 1 404-153D SCRAPER, DISC LH 2 803-043C NUT HEX WHIZ 5/16-18 PLT 3 802-092C RHSNB 5/16-18X3/4 GR5 4 801-164C 1/2-13X 1 3/4 SQ HD SS G5 PLTD 5 817-604C 25P SEED TUBE W/DJ HR SENSOR 5 403-214S SEED TUBE FPU TB,CLIP & SENSOR 6 404-170H 25P SCRAPER SEPARATOR WLDMT 7 805-335C PIN ROLL 5/16 X 5/8 PLT 8 805-250C PIN ROLL 5/16 X 7/8 9 404-077D WALKBEAM 10 404-139D SHIELD, DISK 11 404-079D WALKBEAM PIVOT PIN 12 404-119D SPINDLE, GA WHL MNT ADJ Used on wide row 20“ & 30“ openers 12 198-288D 25P SIDE DEPTH WHL ARM SPINDLE (Shown) Used on narrow row, twin row & split row openers & 15“ 13 198-289D 25P SIDE DEPTH WHEEL ARM (Shown) Used on narrow row, twin row & split row openers & 15“ 13 404-155D ARM, GAUGE WHEEL Used on wide row 20“ & 30“ openers 14 800-001C GREASE ZERK STRAIGHT 1/4-28 15 802-039C HHCS 1/2-13X3 GR5 16 804-015C WASHER LOCK SPRING 1/2 PLT 17 803-020C NUT HEX 1/2-13 PLT 18 816-686C U CUP SEAL 19 198-360D OUTER BUSHING INNER CUP SEAL I (Shown) Used on narrow row, twin row & split row openers & 15“ 19 404-214D 25P O-RING BUSHING Used on wide row 20“ & 30“ openers 20 198-290D 25P DEPTH WHL ECCENTRIC BUSHNG (Shown) Used on narrow row, twin row & split row openers & 15“ 20 404-174D ECCENTRIC BUSHING Used on wide row 20“ & 30“ openers 21 802-172C HHCS 5/16-18X2 1/2 GR5 Use with keeton seed firmer 21 802-092C RHSNB 5/16-18X3/4 GR5 Use with seed-lok or No seed firmer 22 802-663C HFS 1/2-13 X 1 1/2 GR8 NYL PLT 23 814-257C 2.5X16 SIDE DEPTH WHEEL ASSY Refer to “25 Series Seed-Lok“ for breakdown 23 814-260C 3X16 SIDE DEPTH WHEEL ASSY Refer to “25 Series Seed-Lok“ for breakdown 23 814-173C 4 X 16 GAUGE TIRE ASSY-PLASTIC Refer to “25 Series Seed-Lok“ for breakdown 24 802-160C HHCS 5/8-11X3 1/4 GR5 Used on narrow row, twin row & split row openers & 15“ 24 802-646C HHCS 5/8-11 X 3 GR8 Used on wide row 20“ & 30“ openers 25 804-040C WASHER MACH 1.19 X .63 X 18GA 26 804-022C WASHER LOCK SPRING 5/8 PLT 27 804-195C WASHER FLAT 1.31ODX.65IDX.188T 28 404-078D WALKBEAM MOUNT 29 802-228C HHCS 5/8-11X1 1/2 GR5 NYL 30 107-111D DD BRG FLANGE DUST COVER 31 404-121S 4.0 MM 15 DISC W/ 5/8 ASSY Includes items 50 - 53 32 802-258C HHCS 1/2-13X1 GR5 33 817-606C SEED TUBE WITHOUT SENSOR HOLE 33 817-605C 25P SEED TUBE W/HR SENSOR HOLE 33 817-715C SEED TUBE 25S FPU TB&CAP W/ HL 34 802-091C HHCS 1/2-13X1 1/2 GR5 35 405-032D 1X12 PW ADJUSTER 36 199-108H RPBY 199-146A (S/N 1503SS-) Used on short (front) row stagger on twin rows. & 15“ 36 199-140H LONG PW MOUNT (S/N 1504SS+) Used on short (front) row stagger on twin rows. & 15“ 37 800-118C SNAP RING EXT 5/8 .050 T 38 198-202D 20 SER OPNR CAM PIN 39 404-020D PLANTER HANDLE 40 807-119C SPRING COMP .72 X 1.5 X .072WD 41 804-100C WASHER 3/4 X 17/32 X 18 GA PLT 42 805-063C PIN COTTER 3/32 X 1 LONG 43 404-014S ADJUSTMENT ASSY Includes items 9, 11, 28, 39 - 42, 44 & 45 44 805-180C PIN ROLL 1/4 X 1 1/2 LG PLT 45 805-290C PIN ROLL 5/32 X 1 1/2 PLT 46 404-152D SCRAPER, DISC RH 47 800-112C CABLE TIE .19X7.25 1.75D 50LB 48 805-278C PIN CLEVIS 1/4 X 2 1/2 PLT 49 805-063C PIN COTTER 3/32 X 1 LONG 50 890-466C HSG RIBB FLG 6BOLT PLT 51 800-213C RIVET,BUTTON HEAD 1/4 X 1/2 52 820-287C 4.0 MM 15 DISK (21 DEG BEVEL) 53 188-001V BEARING AA205DD 54 812-327C 25P ECCENTRIC HEX ADJUSTER 55 199-109H RPBY 199-147A (S/N 1503SS-) Used on rear (long) row stagger rows on 15“ & twin row & middle row stagger on twin row splitter openers 55 199-141H 25P MID PW MOUNT (S/N 1504SS+) Used on rear (long) row stagger rows on 15“ & twin row & middle row stagger on twin row splitter openers 56 833-222C DJ PLANTER STYLE SEED SENSOR 57 817-604C 25P SEED TUBE W/DJ HR SENSOR Includes items 817-605C & #56 58 404-189D 25 SERIES SEED FLAP CLIP 59 817-349C SEED FLAP, UHMW, LONG Replace with 816-302C 60 816-302C SEED FLAP, RUBBER, SEED-LOK 61 298-881S 25P WIDE ELIMINATOR BUSHNG ASY 61 298-882S 25P NARROW ELIMINATOR BUSH ASY 62 198-331D SEED TUBE 25S HOOK CLIP
