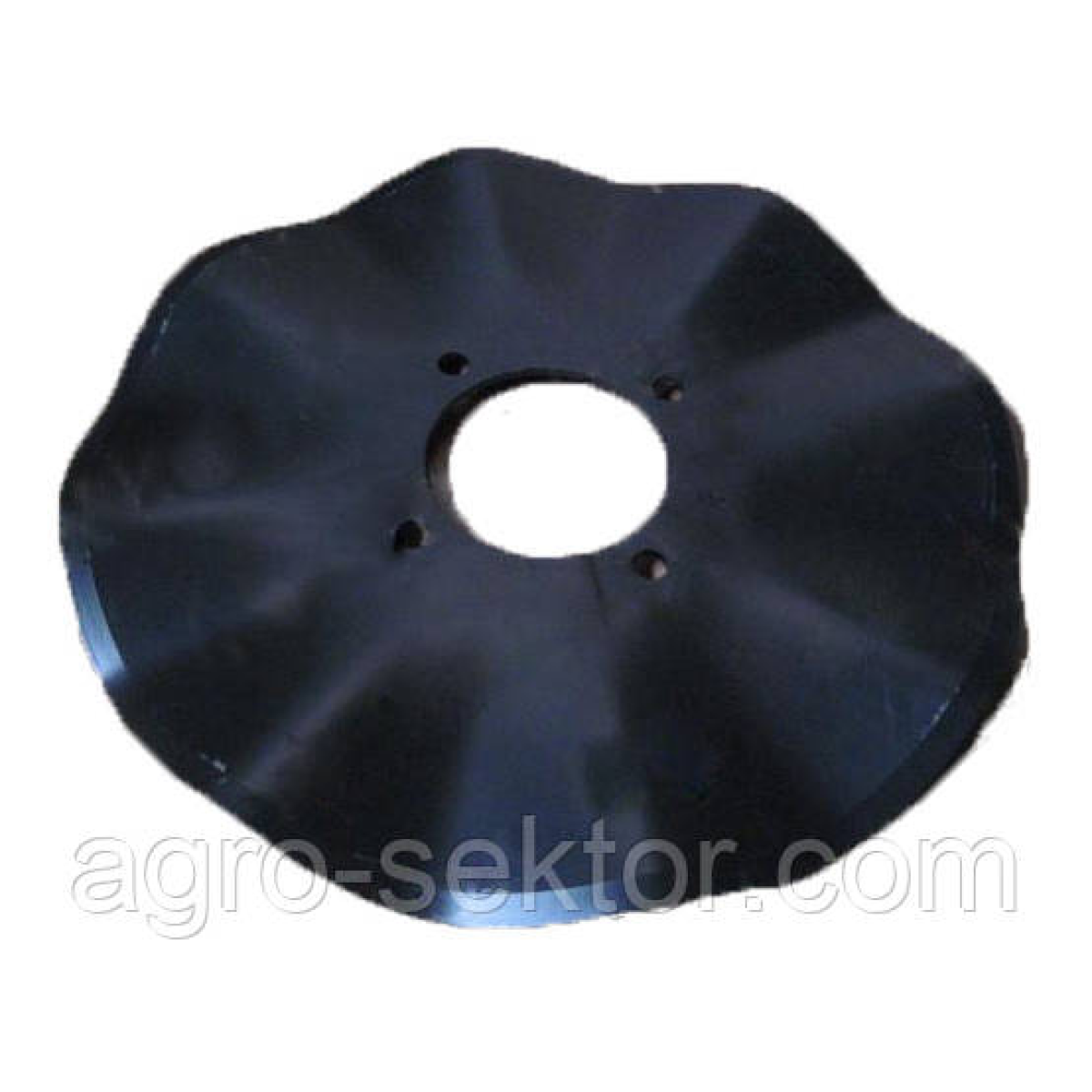

ТурбоНіж Kinze 15“ GD7803

Опис

Диск колтера Kinze, Лапи диски та Запчастини на землеоброблюючу техніку в Дніпропетуванні. Сошник для роботи по стерні ( турбодиск, розстібник) 1. G10217 - Washer, 5/8“ USS (As Required) 2. GD7817-04 2 Spacer, 1/2“ 3. GB0227 2 Adapter W/O-Ring And Spring Washer GD8844 - O-Ring GD8843 - Spring Washer 4. G10574 4 Carriage Bolt, 1/2“-13 x 1 1/4“ G10111 4 Lock Nut, 1/2“-13 5. GD7803 - Fluted Blade, 1“, 8 Flutes (Shown) GD7804 - Bubbled Blade, 1“ GD9254 - Fluted Blade, 3/4“, 13 Flutes 6. GA5640 1 Hub W/Bearings And Grease Fitting GA5622 - Bearing (2 Used Per Hub) G10640 - Grease Fitting, 1/4“-28 7. GA5798 1 Support Plate 8. G10068 1 Hex Head Cap Screw, 5/8“-11 x 6“ G10107 1 Lock Nut, 5/8“-11 9. GA5643 1 Fork Mount 10. G10012 1 Hex Head Cap Screw, 5/8“-11 x 6 1/2“ GD7805 2 Washer G10107 1 Lock Nut, 5/8“-11 11. GB0218 10 Bushing, 19/32“ 12. G10055 2 Hex Head Cap Screw, 5/8“-11 x 1 1/4“ GD7805 2 Washer 13. GA5637 1 Spring Socket 14. GA5631 1 Lower Parallel Link 15. GD7815 1 Pin, 5/8“ x 4 1/4“ 16. G10008 6 Hex Head Cap Screw, 5/8“-11 x 2“ GD7805 6 Washer G10107 4 Lock Nut, 5/8“-11 (As Required) 17. GD7818 2 Special Bolt 18. GD7817-01 2 Roller, 3/4“ 19. GD7816 1 Depth Control Bar 20. GD7811 1 Depth Adjustment Clamp 21. G10581 2 Hex Head Cap Screw, 1/2“-13 x 2 1/4“ G10228 2 Lock Washer, 1/2“ 22. G10582 1 Hex Head Cap Screw, 5/8“-11 x 4“, Full Thread 23. G10104 1 Hex Nut, 5/8“-11 24. G10573 1 Hex Head Cap Screw, 5/8“-11 x 5 1/2“, Full Thread 25. GB0196 1 Washer 26. GD7817-09 1 Stop, 1 3/4“ 27. GD7831 1 Compression Spring 28. GA5630 1 Upper Parallel Link 29. GA5635 1 Spring Guide 30. G10747 4 Carriage Bolt, 1/2“-13 x 2“ G10206 - Washer, 1/2“ SAE (As Required) G10228 4 Lock Washer, 1/2“ G10102 4 Hex Nut, 1/2“-13 31. GA5636 2 Arm 32. GD7823 - Solid Blade, 12“ (Shown) GD8307 - Notched Blade, 12“ 33. G10572 12 Truss Head Slotted Machine Screw, 5/16“-18 x 7/8“ G10106 12 Hex Nut, 5/16“-18 34. GD1132 2 Dust Cap 35. GA5654 2 Hub W/Bearings GA2014 4 Bearing 36. G10036 2 Hex Head Cap Screw, 5/8“-11 x 4“ G10107 2 Lock Nut, 5/8“-11
